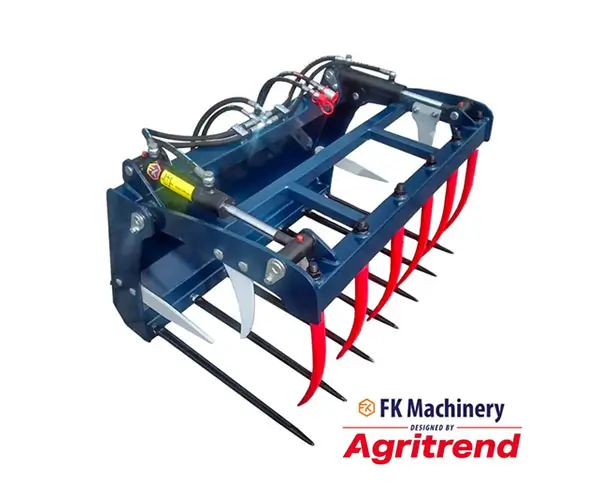

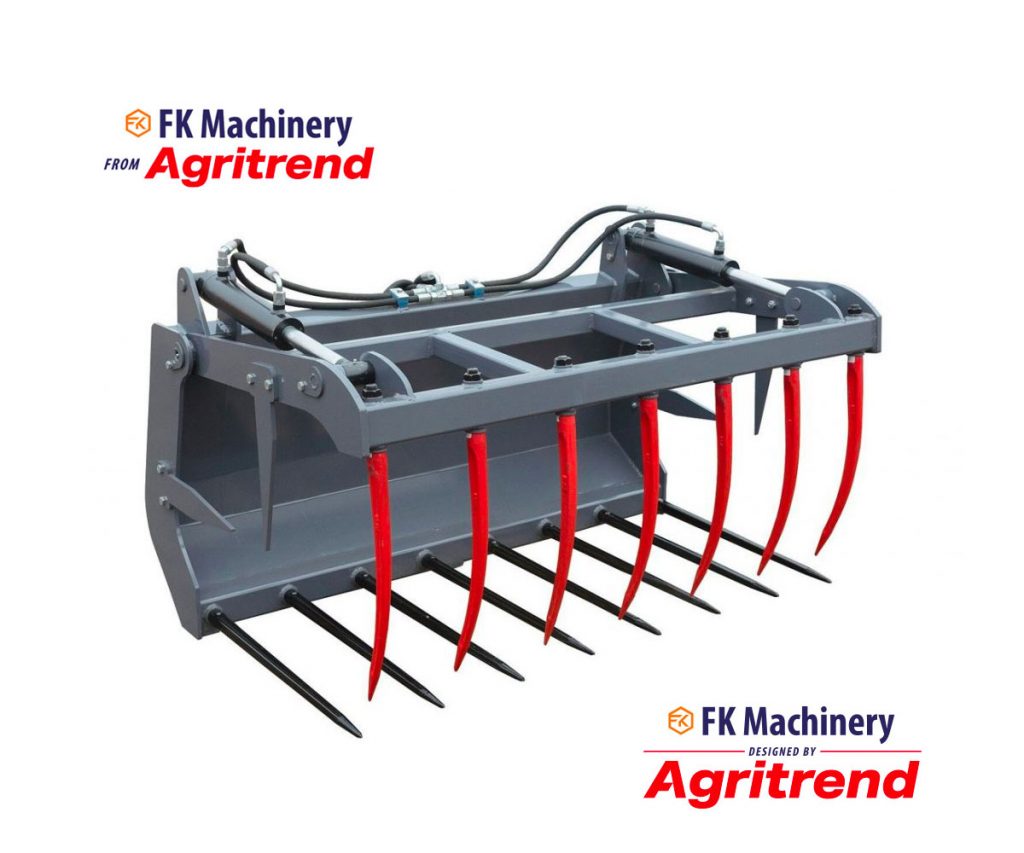

Muck Grab for Tractor Loader 1.6 to 2.4 meter versions

Muck grab with strengthened design by Agritrend LTD suitable for tractor loader and telehandler

Designed with greater volume and strength at each size to offer best value.

Features:

  • Sizes from 1.6 to 2.4 meters width
  • All with hydraulic rams and hoses as standard
  • Height of back-frame 880mm
  • Front to back 1000mm
  • Overall opening height 1280mm
  • Bite opening height 1174mm (tip of bottom tine to tip of top tine when jaw open at max)
  • Top tine: Conus I, forged, curved, bushed, bolt-secured: 680mm (measured 580mm along the curve of the protruding portion)
  • Bottom tine: Conus I, forged, straight, bushed, bolt-secured: Protruding length 700mm
  • 4 X plasma cut side-tines
  • Brackets POA

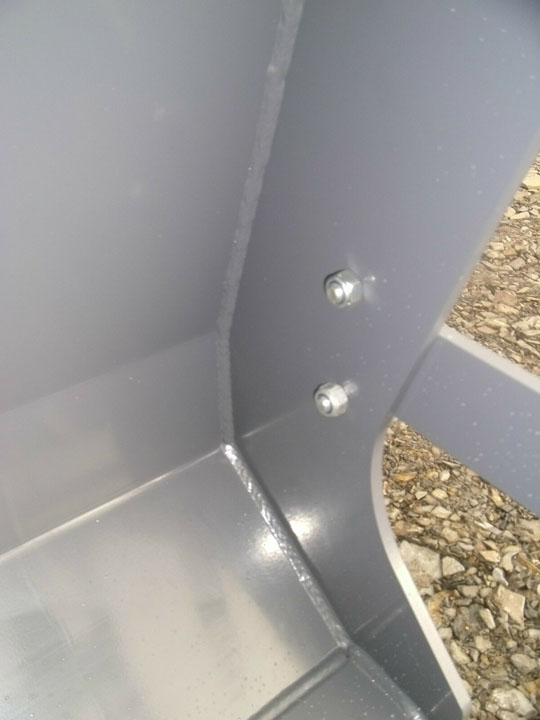

  • All brackets on 8mm thick support plates with generous margins to spread stress.
  • Hydraulic cylinders X 2 63mm - 460/220mm
  • Underside scuff plates
  • Grease points for long life

Model Width in Meters Weight kg Volume meters cubed Number of tines top/bottom Price net of VAT £
MFWG160 1.6 meters 295 0.88 7/8 1500
MFWG180 1.8 meters 320 1.00 8/9 1593
MFWG200 2.0 meters 340 1.10 9/10 1665
MFWG220 2.2 meters 370 1.21 10/11 1755
MFWG240 2.4 meters 410 1.32 11/12 1845
