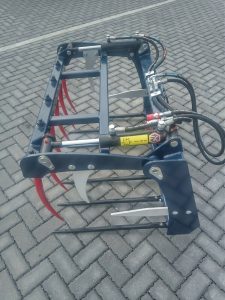

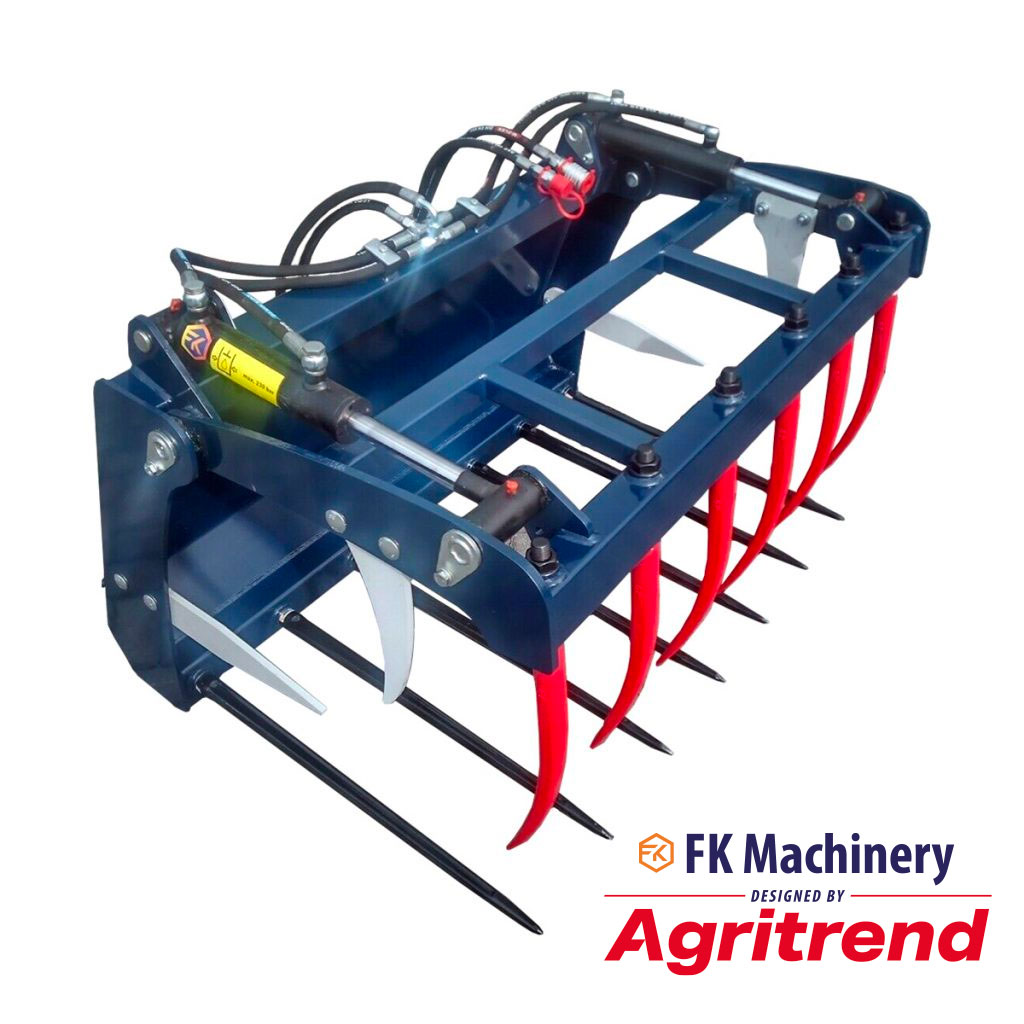

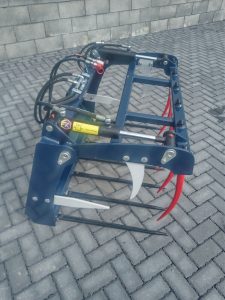

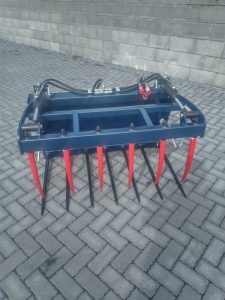

Muck Grab 0.9 - 1.7 meter for skid-steer/mini-loader & tractor loader.
Small Muck Grab for your skid steer, mini-loader or tractor loader from Agritrend LTD

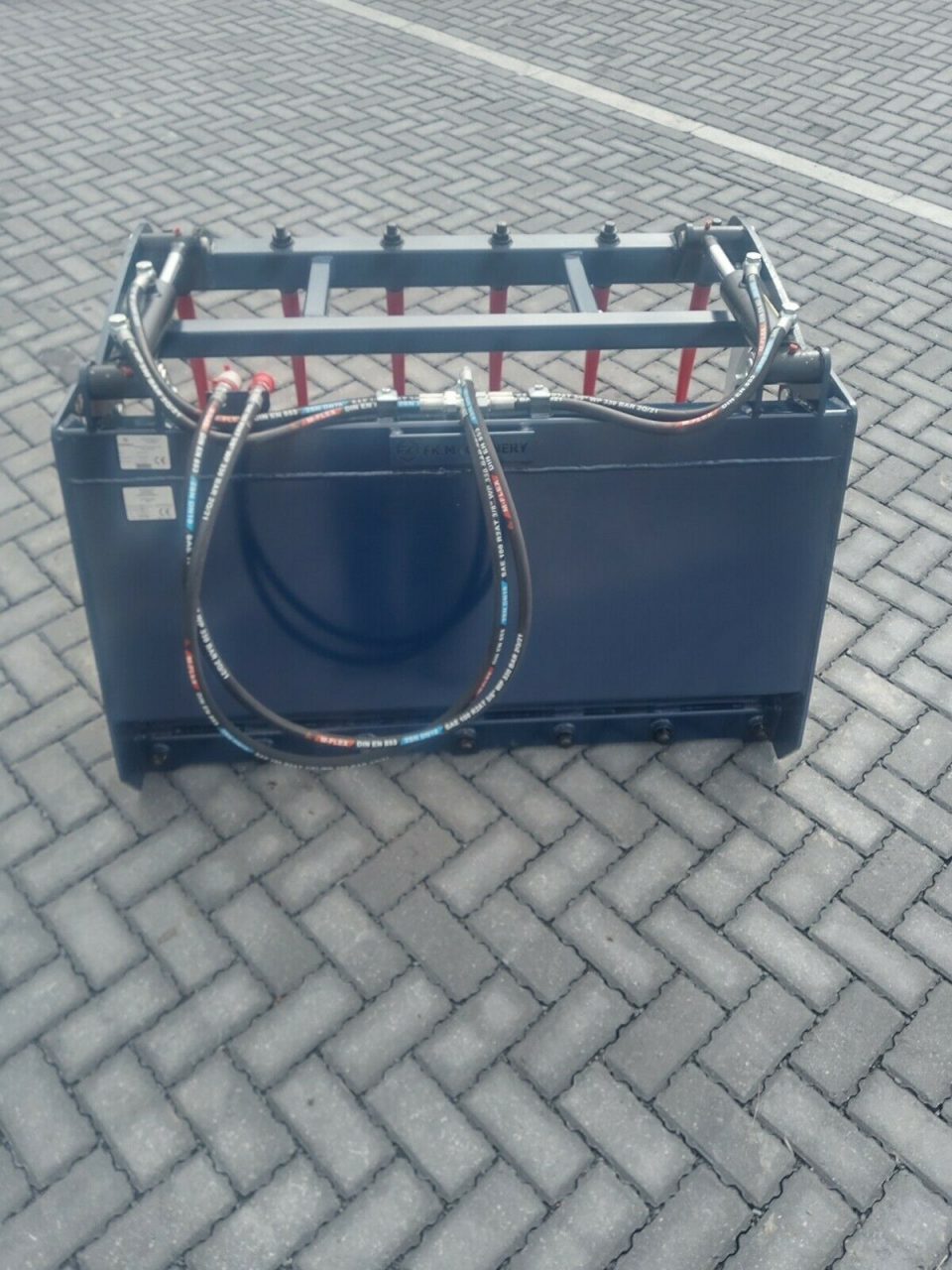

Robust muck grabs in 6 sizes from 0.9 to 1.7 meter width. 355 carbon steel is used in the construction as per the high Agritrend specification for a long life implement. Comes with hydraulic hoses and the couplers of your choice. The backs of these muck grabs are low at 803mm to help you see over the implement to what you are doing. Ideal for your Bobcat, Caterpillar, Avant, Case, Weidemann and Kubota. We can offer you 8mm bracket support plates upon which brackets of your choice can be mounted. This gives a generously engineered muck grab giving a long life and resilient implement.
Features:

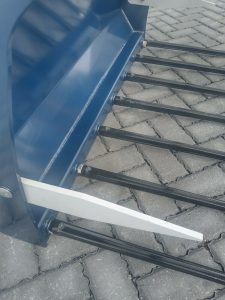

- 4 x bolt on retractable flat side-tines as standard
- Height of back-frame 803mm Front to back 885mm
- Overall opening height 1135mm Bite opening height 1027 mm (tip of bottom tine to tip of top tine when jaw open at max)
- Bottom tines; forged, curved, bushed Conus I: 480mm (measured along the outer ellipse of the curve)

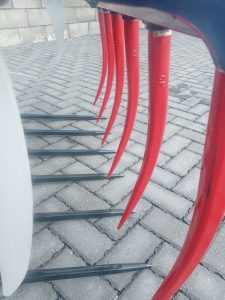

- Top tines; forged, curved, bushed, bolt-secured: 700mm (measured along the protruding length of the tine)
- Brackets POA
- All brackets on generous 8mm thickness support plates with generous margins to spread stress.
- Underside scuff plates
- Grease points for long life
| Width (m) | Weight (kg) | Volume (L) | Top Tines | Bottom Tines | Rams | Price |
| 0.9 | 155 | 360 | 4 | 5 | 1 | £1090 |
| 1.1 | 170 | 440 | 5 | 6 | 1 | £1120 |
| 1.2 | 195 | 480 | 6 | 7 | 1 | £1165 |
| 1.4 | 210 | 560 | 7 | 8 | 2 | £1320 |
| 1.5 | 220 | 600 | 7 | 8 | 2 | £1370 |
| 1.7 | 233 | 680 | 8 | 9 | 2 | £1400 |
Agritrend LTD has been designing and supplying farm and construction machinery in the UK and Ireland since 2012. Our approach with this muck grab product for skid-steer, mini loader and tractor loaders was to specify a grab which is stronger and built with more care than competitor products.
We use better materials and supervise and support the build process at the point of manufacture to give our customers unbeaten value for money and a longer life implement.
