Agritrend High Tip Bucket Ranges

Agritrend/FK Machinery High Tip Hydraulic Bucket Range.

See on this page our Regular size range of high tip buckets. See also our Volume range of high tip buckets and our Maxi Volume version.

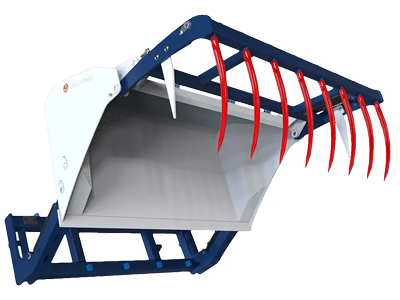

We also have high tip buckets with an additional hydraulic powered claw grab. Get the most out of your material handling with one of our High Tip Loader Buckets. When it comes to moving and managing loose materials, high tip loader buckets offer superior efficiency and versatility.

This heavy-duty equipment is designed to integrate with wheel loaders, excavators, skid steers, and other machinery to expand the capabilities of your material handling operations.

Key Benefits of High Tip Loader Buckets:

  • Increased loading capacity – Choice of bucket sizes (max volume 3500 litres) and extended reach allows you to scoop, lift and carry far more materials in each cycle. This boosts productivity significantly.
  • Fast and easy dumping - The high pivot tipping action quickly unloads materials exactly where needed. No more manual shoveling or raking out material from low clearance buckets.
  • Reduced Spillage - The flared bucket shape and smooth hydraulic tipping motion prevents messy or accidental spills during unloading. This saves time and money.
  • Durable construction - Made from hardened 355 steel with hardox scuff and bite edges, these heavy-duty buckets stand up to the rigors of daily use across various applications.
  • Customizable size - Bucket size can be tailored to your specific material handling needs from our range of options.
  • Low maintenance - With few moving parts, and accessible grease points, high tip loader buckets are easy to service and maintain as needed.

You can trust our high tip loader buckets from Agritrend. We work closely with the producer to ensure our kit has perfect geometry, excellent welding and proper paint application standards to make a long life and reliable implement.

Contact us today to choose the right bucket for your equipment and application needs.

Specific features:

Robust and well designed with HB500 hardox bite edge, bump stoppers and accessable grease points. Also underside hardox scuff plates for max wear life. We give you the hydraulic couplers to suit and you can call us for a quote with the bracketing you require. Three ranges with a choice of widths and volumes.

General Features & Specification:

  • Allows for an increased dump height for loading high sided hoppers.
  • Rams mounted on either side of the bucket allowing for a high pivot point.
  • Rubber bump stopper protectors to cushion the bucket and rams on return from tip position
  • Hardox cutting edge as standard
  • Generous heel and side metal thickness
  • Greaseable pivot points
  • Hardox cutting edge as standard
  • Generous heel and side metal thickness
  • Greaseable pivot points
  • Hydraulic couplings and hoses to suit your requirement
  • Telescopic handler or loader brackets of your choice fitted at the cost of brackets plus £100 for welding and finishing

Standard Range Agritrend High Tip Bucket

≠ 6 mm

Side:

≠ 5 mm

Cover:

0.43-0.79 m³

Volume:

Our standard range of high tip buckets has widths between 120cm and 220cm and volumes 430 litres to 790 litres. They have accessible grease points and the bite edge is 150 x 16 HB500. The sides are 6mm and the heel is 5mm.

Index Width Weight Vol
MHTB120 120 cm 351 kg 0.43 m³
MHTB140 140 cm 381 kg 0.50 m³
MHTB160 160 cm 411 kg 0.58 m³
MHTB180 180 cm 441 kg 0.65 m³
MHTB200 200 cm 471 kg 0.72 m³
MHTB220 220 cm 501 kg 0.79 m³

Volume Range Agritrend High Tip Bucket

≠ 8 mm

Side:

≠ 5 mm

Cover:

0.96-1.92 m³

Volume:

Our volume range of high tip buckets has widths between 140cm and 260cm and volumes 960 litres to 1920 litres. They have accessible grease points and the bite edge is 150 x 16 HB500. The sides are 8mm and the heel is 5mm. We can customise the side profiles by extension to increase volume by an additional 30%.

Contact us to ask about this option.

Index Width Weight Vol
MHTB140 140 cm 604 kg 0.96 m³
MHTB160 160 cm 640 kg 1.12 m³
MHTB180 180 cm 680 kg 1.28 m³
MHTB200 200 cm 725 kg 1.44 m³
MHTB220 220 cm 759 kg 1.60 m³
MHTB240 240 cm 793 kg 1.76 m³
MHTB260 260 cm 827 kg 1.92 m³

Maxi Range Agritrend High Tip Bucket

≠ 8 mm

Side:

≠ 6 mm

Cover:

1.61-2.76 m³

Volume:

The biggest implement in this group offers 3500 litres capacity over a 2.6 meter width. The weight on the bucket when empty and without bracketing is 1176kg with 6mm heel thickness and 8mm sides with 200 x 20 HB500 bite edges. Please call us for more information and a quote on this range.

We can customise the side profiles by extension to increase volume by an additional 30%.

Contact us to ask about this option.

Index Width Weight Vol Vol. XLHTBB [m³]
XLHTB160 160 cm 846 kg 1.67 m³ + 0.44 m³
XLHTB180 180 cm 912 kg 1.87 m³ + 0.5 m³
XLHTB200 200 cm 978 kg 2.07 m³ + 0.55 m³
XLHTB220 220 cm 1044 kg 2.30 m³ + 0.62 m³
XLHTB240 240 cm 1110 kg 2.53 m³ + 0.66 m³
XLHTB260 240 cm 1176 kg 2.76 m³ + 0.72 m³
