Agritrend FK Machinery Mixer Bucket for Tractor Loader, Skid Steer, Back-Hoe and Telescopic.



The is the Agritrend FK Machinery mixer bucket range. The first versions were made in 2013 so we have a 9 year track record of working with FK Machinery on features, design, components and build.

The mark 5 version is now in the 5th year of sales and comes in 4 sizes with robust build and extra grout proofing. Long life is assured with hardox wear-resistant steel used at the critical wear and stress points. Our agreement with FK machinery means that better quality components are used. The photos reveal the very high standards of build care and quality achieved through the working partnership of Agritrend and FK machinery

Bucket Width Total Width Weight (kg) Mix Capacity Cubic meters min/max Oil Flow Litres/min Price Nett of VAT
1.2 1.45 620 0.38 to 0.42 50-80 £5,480
1.5 1.75 680 0.48 to 0.53 50-80 £5,940
1.8 2.05 780 0.57 to 0.63 50-80 £6,280
2.0 2.25 860 0.64 to 0.75 50-80 £6,670

mixer-bucket1

Agritrend mixer buckets are made from hardox steel

mixer-bucket2

Buckets have 12mm end plates and 8mm bottoms protected by hardox scuff plates

mixer-bucket1

Helical mmixing auger churns material to the centre

mixer-bucket2

Generously engineered hydraulic chain drive using 1 inch thick chain

mixer-bucket1

630 litre version with total width 1.75m. Choice of 4 sizes

mixer-bucket2

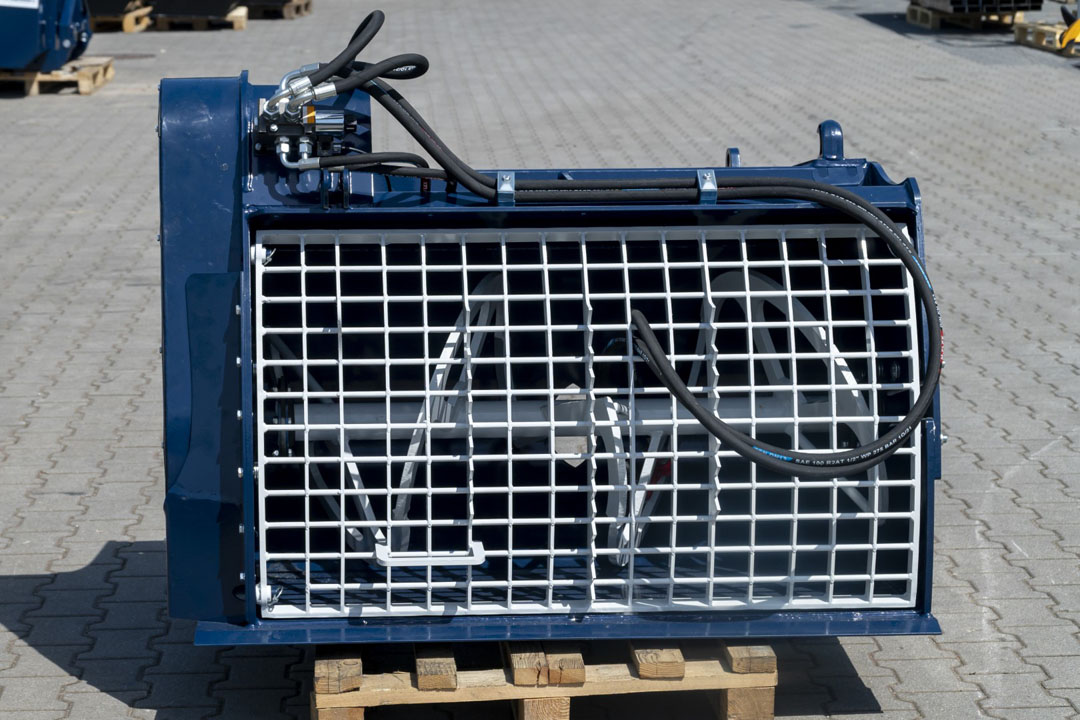

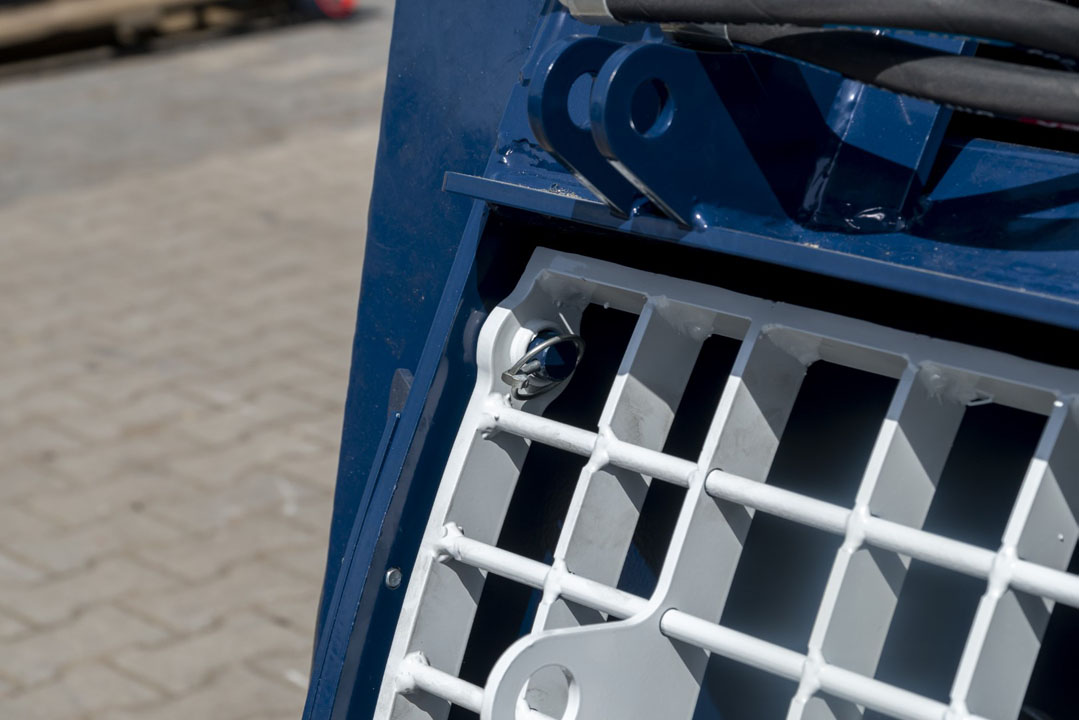

Robust grill made stronger with curved profile

mixer-bucket1

Grill open: Showing 16mm X 22mm auger designed to churn to the middle. Centrally placed 155mm pouring outlet also shown

mixer-bucket2

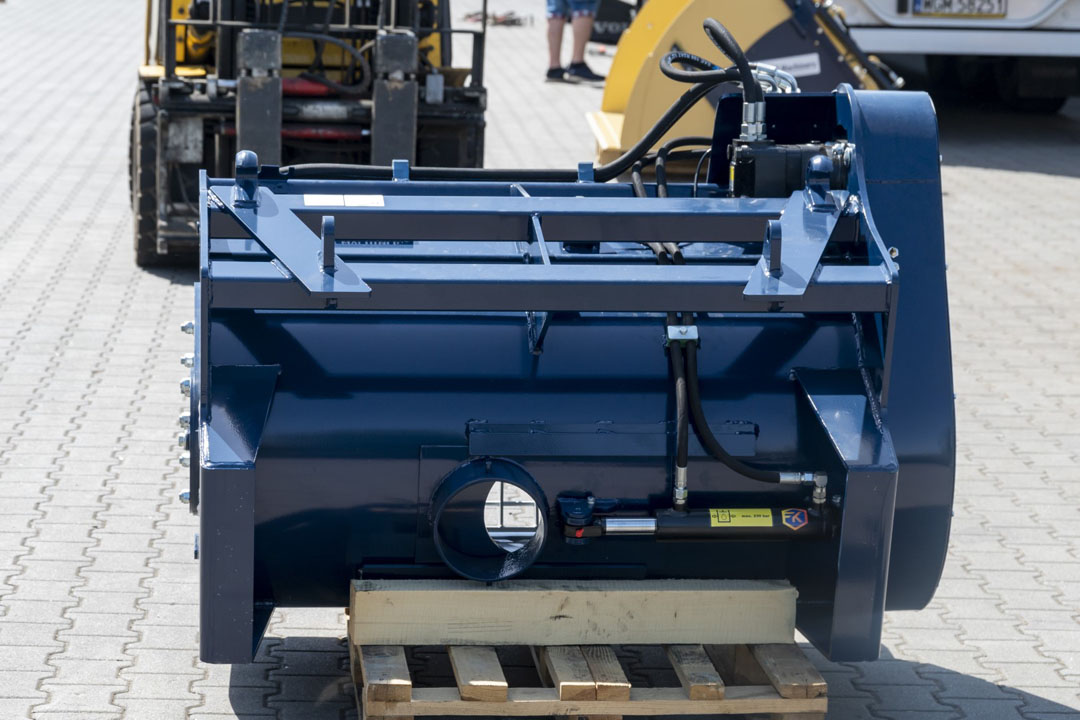

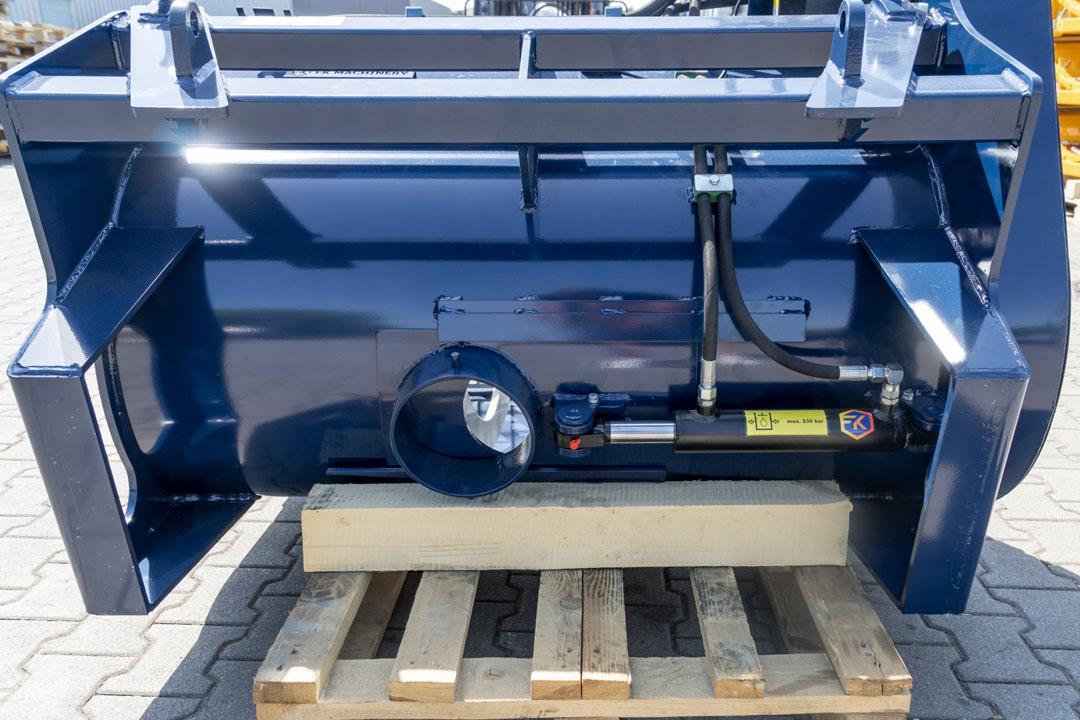

Showing hydraulically operated outlet

mixer-bucket1

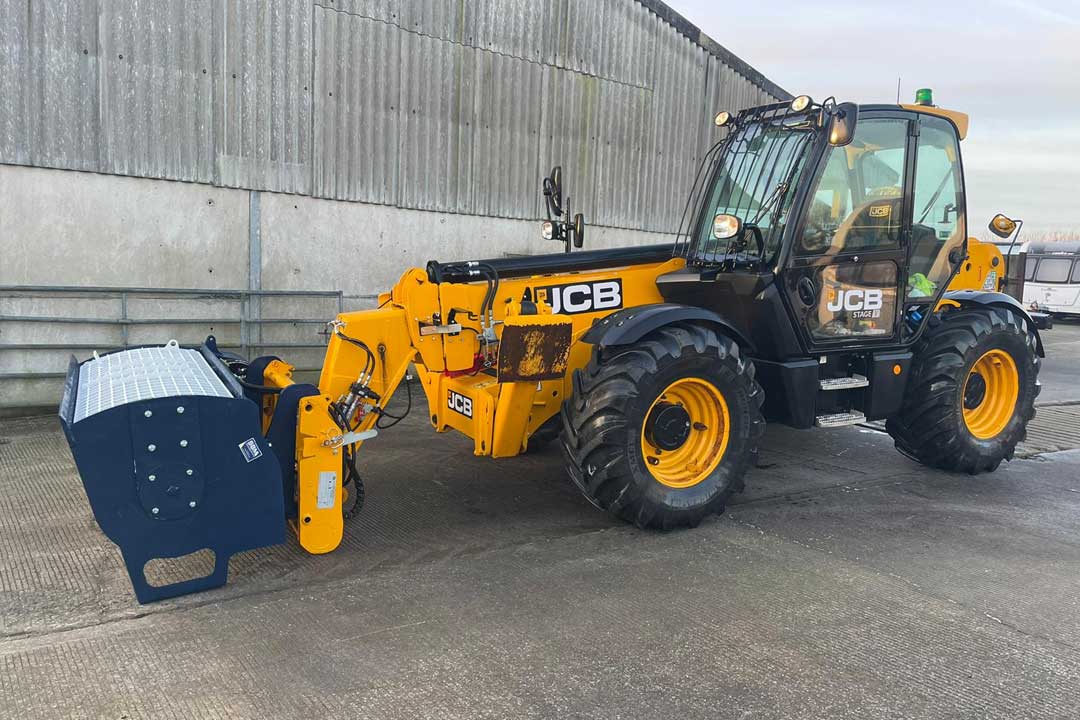

In position to mix and move at the same time

mixer-bucket2

Comes with flexible pouring tube and electric control from the cab

mixer-bucket1

Front view

mixer-bucket2

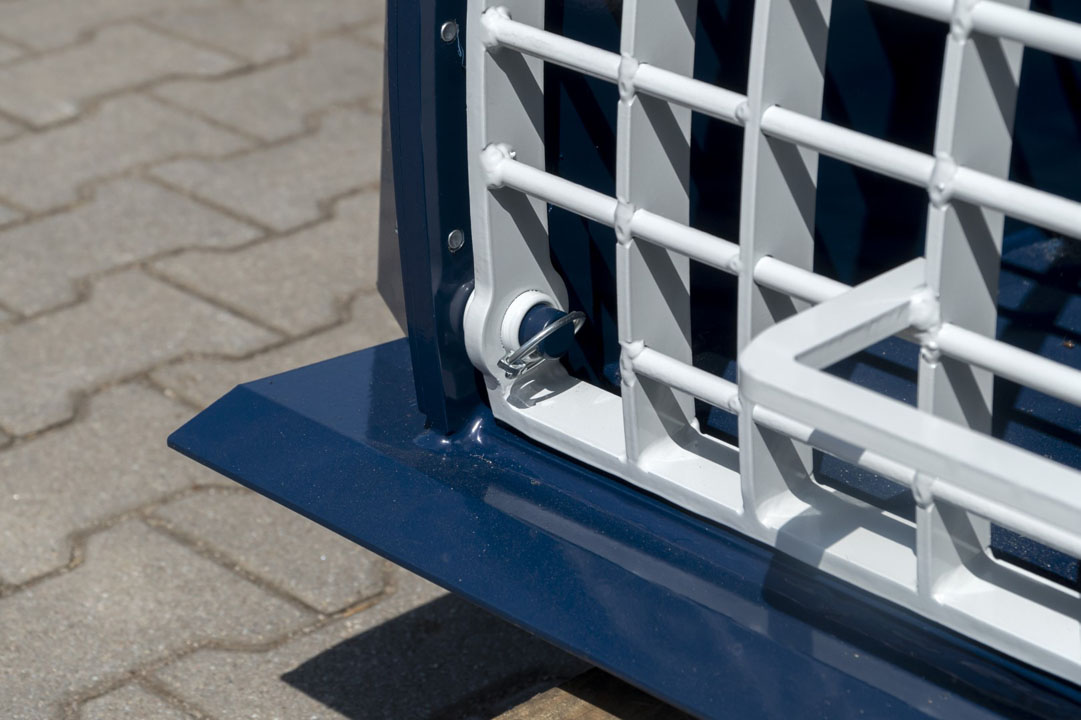

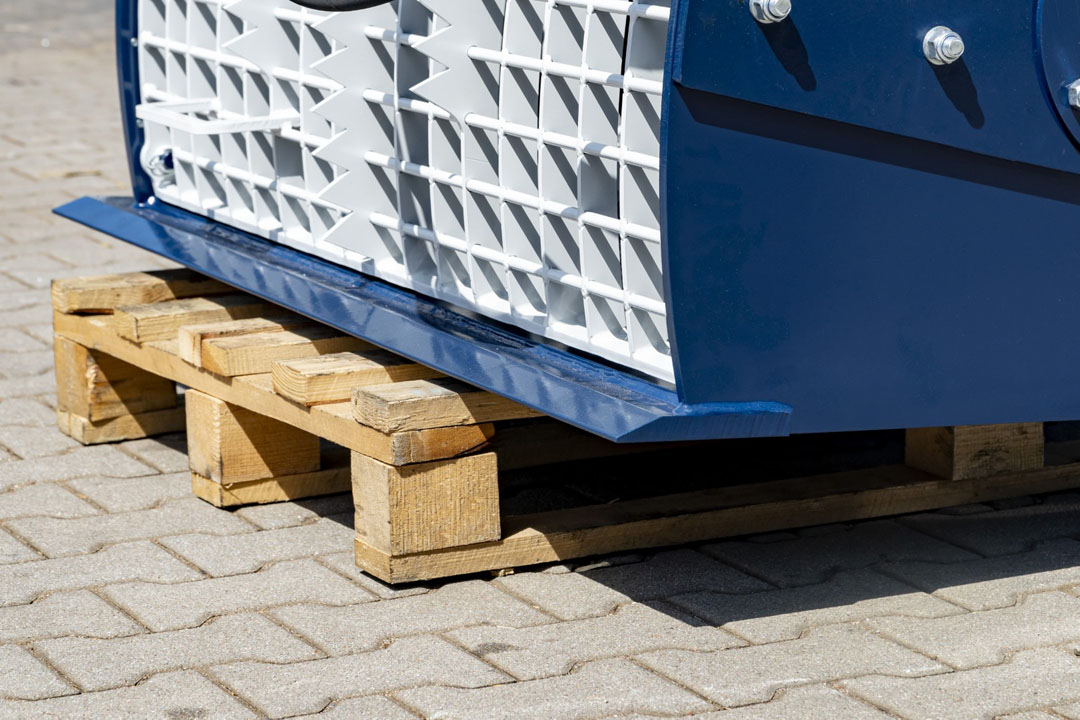

Heavy duty bite edge

Mixer buckets are suitable for skid steer, excavators, tele-handlers, back-hoe loaders and loading shovels.

  • Bucket sides are 12mm with back, front and bottom 8mm thickness.
  • Hydraulic pump specification SMT4004MDGP max pressure 180 bar max oil flow 125 I/min . Flow requirement is 50-80 I/min.
    Note: The 2 meter version has twin hydraulic motors.
  • Spiral auger made from abrasion resistant steel with profile 16mm X 22mm. Churns to the centre for efficient mixing.
  • The mixers have a hydraulic chain drive which is generously engineered for long life and reliability.
  • Warranty and parts service from our 4 depots in the UK.

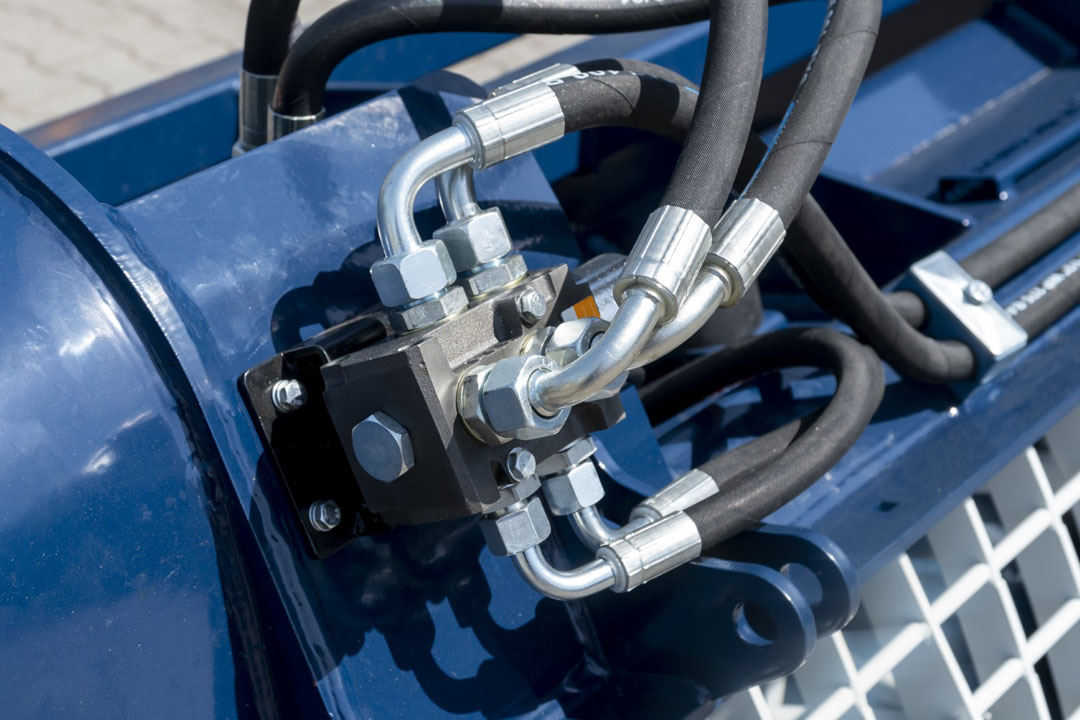

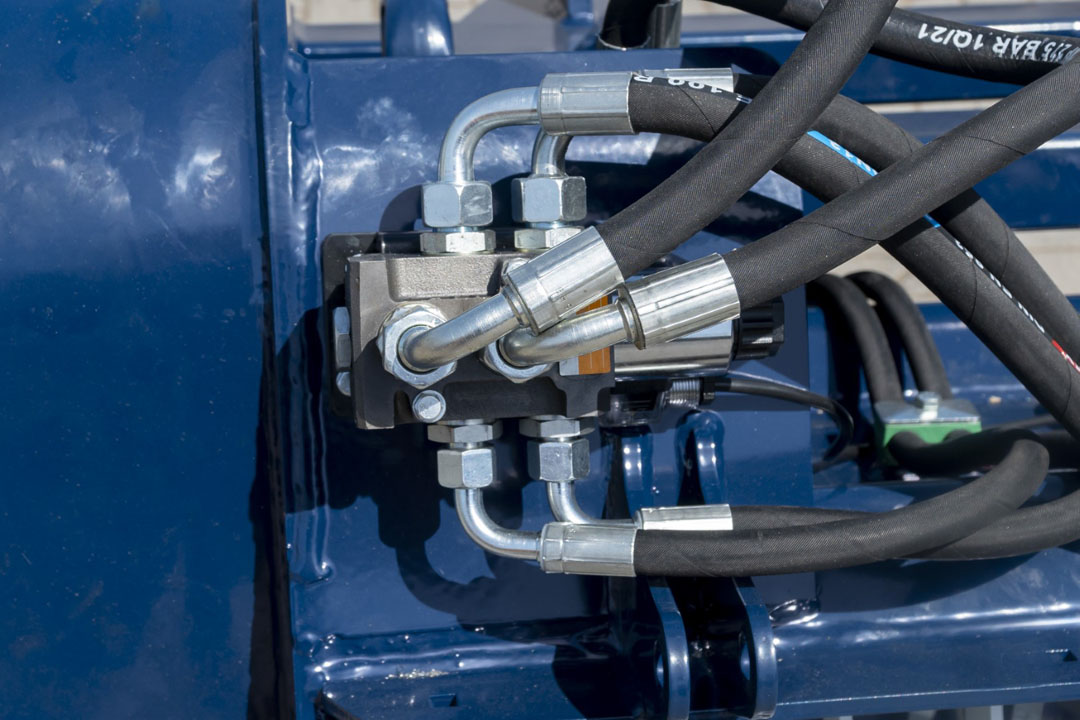

  • Comes with hoses and electric cab control with 1.5m pouring tube. A solenoid operated valve block provides full mixing and pouring functions on a single double acting hydraulic circuit.
  • Choice of bolt on or weld on Brackets. (POA)
  • Optional pouring chute ( see below)

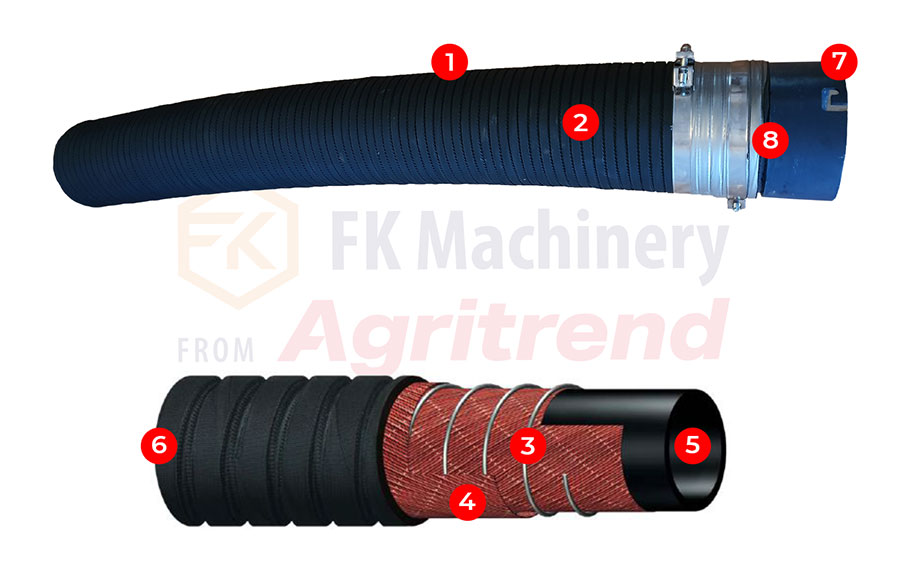

Optional Pouring Tube

  1. Abrasion resistant Vacumflex pouring tube 1.5 meters length
  2. Mandrel built (spiral ridge)
  3. Embedded flexible steel helix reinforcement
  4. High tensile layered internal fabric membrane
  5. Inside diameter 203mm with internal surface of smooth, abrasion resistant rubber
  6. Outside diameter 223mm with ridged spiral corrugation
  7. Bayonet type fitting onto the mixer for easy on/off application
  8. Bayonet collar joint is designed to allow oscillation, enabling the tube to be directed
