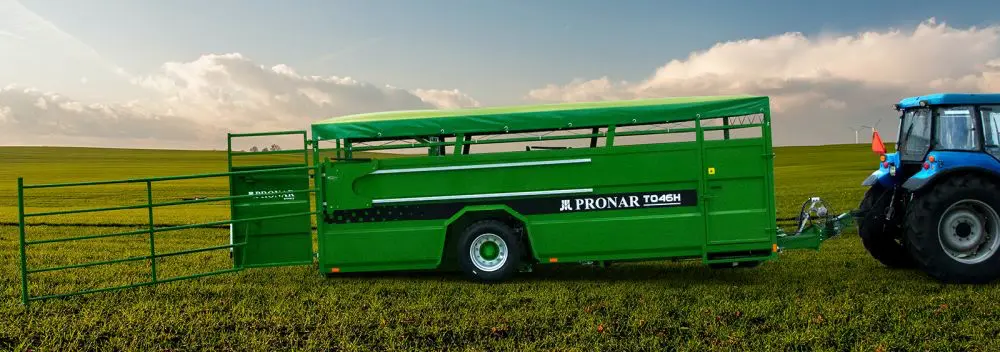

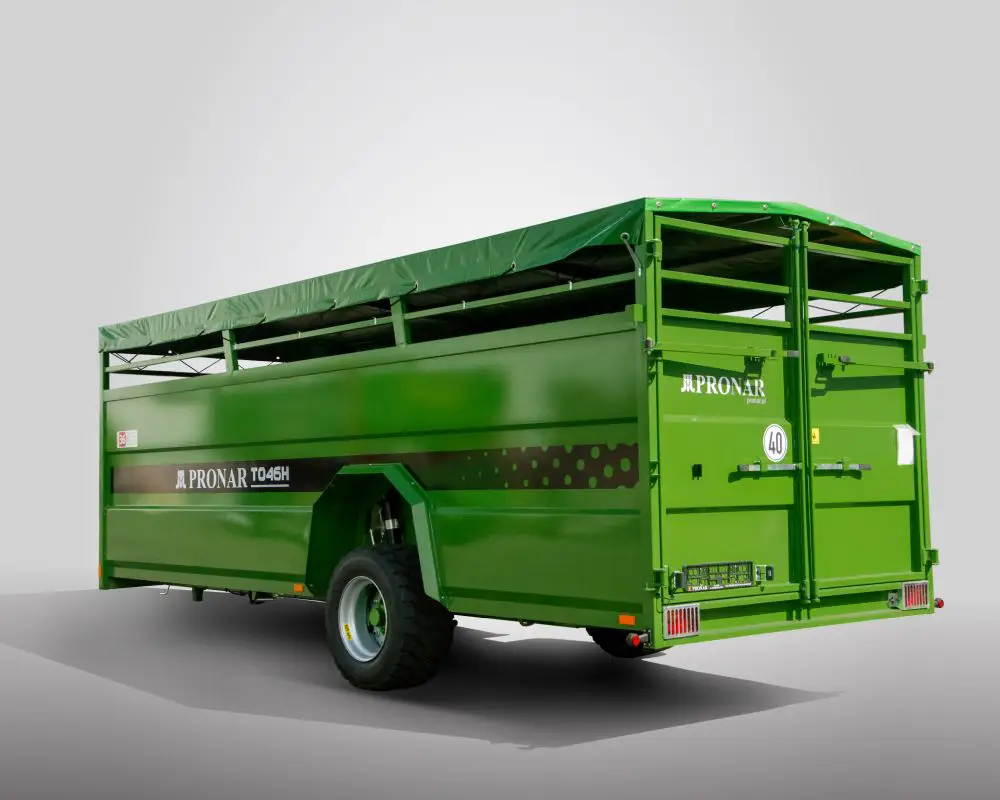

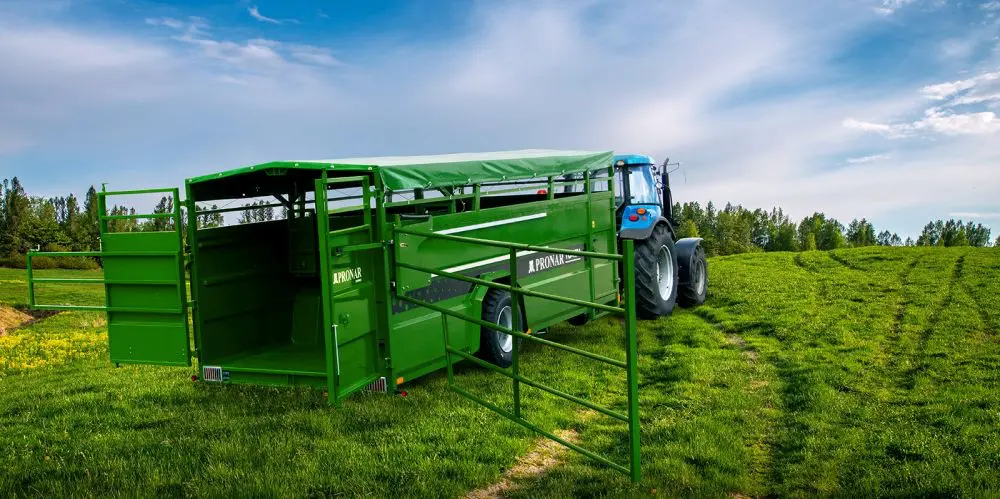

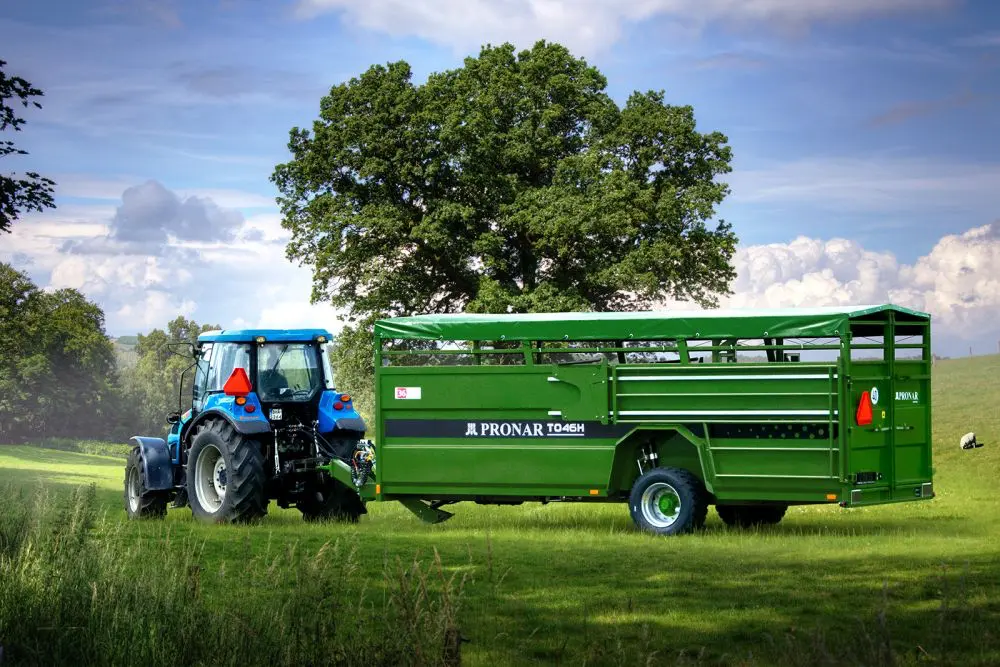

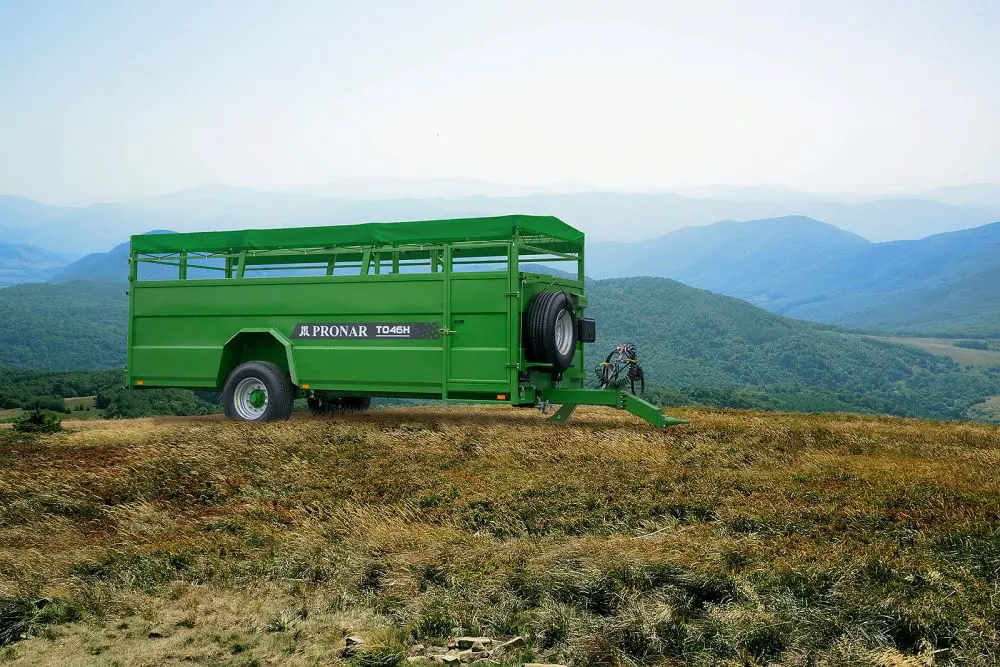

Pronar T046-H Single Axle Cattle and Livestock Trailer with Hydraulic Drop-Down Floor and hydraulic shock absorbers on the suspension.

This is a medium sized trailer suitable to carry up to ten head of livestock with a hydraulic drop down system to lower and tilt the floor during loading and unloading. Additional tilt and turn front door and a smooth and comfortable ride from the hydraulically shock absorbed suspension.

Gross weight 11000 kg

Payload 7850 kg

Empty weight 3150 kg

Loading case 6990 x 2240mm (20 feet 8 inches by 7 feet 4 inches)

  • Permissible total weight: 11000 kg
  • Load capacity: 7850 kg
  • Empty weight: 3150 kg
  • Loading space: 13,4* m2
  • Loading case inside length: 6290 mm
  • Loading case inside width: 2240 mm
  • Loading case inside height: 2100** mm
  • Dimensions: length/width/height 8320/2550/2860 mm
  • Sidewall height: 1500 mm
  • Floor/sidewall thickness: 4/3 mm
  • Platform height, measured from the ground (transport position/loading position): 700/200 mm
  • Wheel track: 2160 mm
  • Suspension: hydraulic, single axle
  • Hitch-ring load: 2000 kg

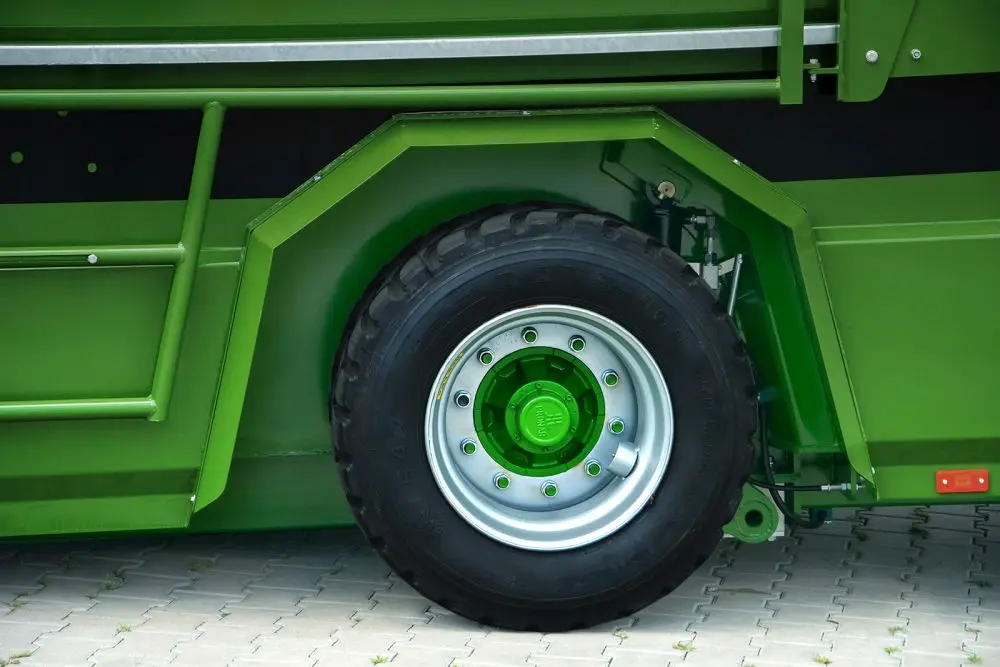

  • Tyres: 385/65R22.5
  • Maximum speed: 40 km/h
  • Tractor power requirement: 41.6/30.6 hp/kW

* surface without inner wheel arches

** height from the ground to the highest point of the canvas cover frame

  • Hydraulically lowered loading case facilitating animal (un)loading
  • Sidewalls made of profiled steel 3 mm
  • Right – side front door facilitating access to transported animals
  • Wide-opening rear door

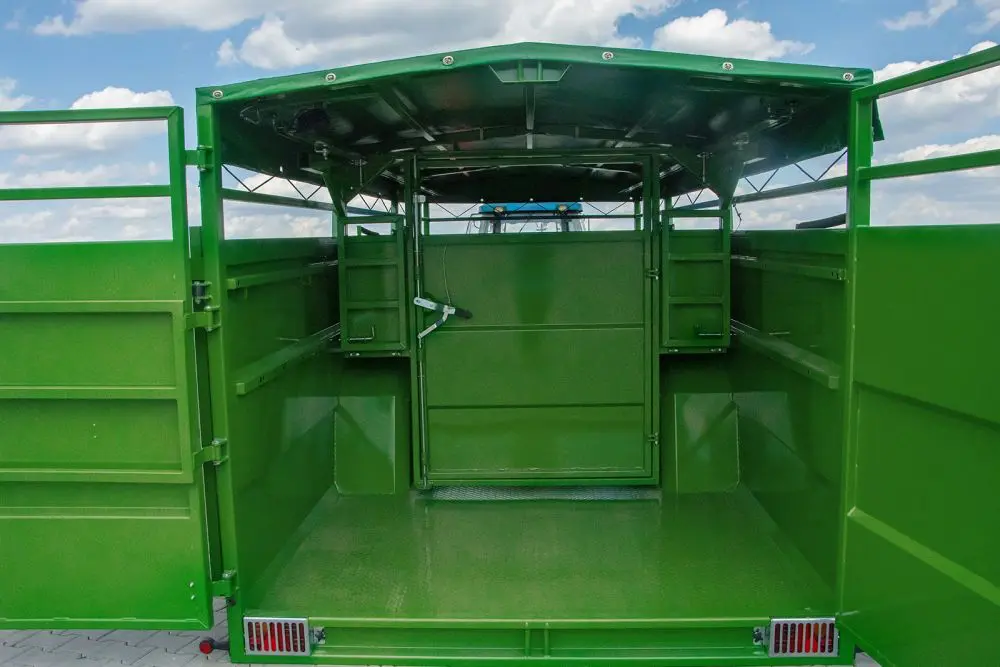

  • Sealed chequer plate floor with two drainage holes
  • Chassis frame made of steel closed rectangular steel profiles
  • Single – axe suspension equipped with 2 hydraulic cylinders fitted with drum brakes
  • Hydraulic vibration shock absorbers
  • Rigid drawbar integrated with frame to couple with lower or higher hitch of the tractor
  • Drawbar towing hitch: rotary with towing eye 50 mm
  • Drawbar support: telescopic with 1-section gear
  • Braking system: double line pneumatic with manual braking force controller
  • Crank hand brake 12V lighting installation (combined LED), with clearance lighting
  • Cover frame with linking bars
  • Laced cover
  • Wheel chocks + galvanized racks
  • Double-component chemically hardened painting materials, UV-resistant
  • Sealed chequer plate floor with two drainage holes covered with 15 mm anti-sliding, granular resin layer
  • Drawbar towing hitch: fixed upper with 40 mm towing eye
  • Drawbar towing hitch: fixed ball-type K80 mm
  • Drawbar support: hydraulic leg scissor-type with cut-off valve
  • Braking system: double line pneumatic with automatic (ALB) braking power controller
  • Braking system: hydraulic
  • Cattle separating, movable, inner barrier on a sliding track
  • Side rails for easy loading Inner barrier securing rear, two wing door

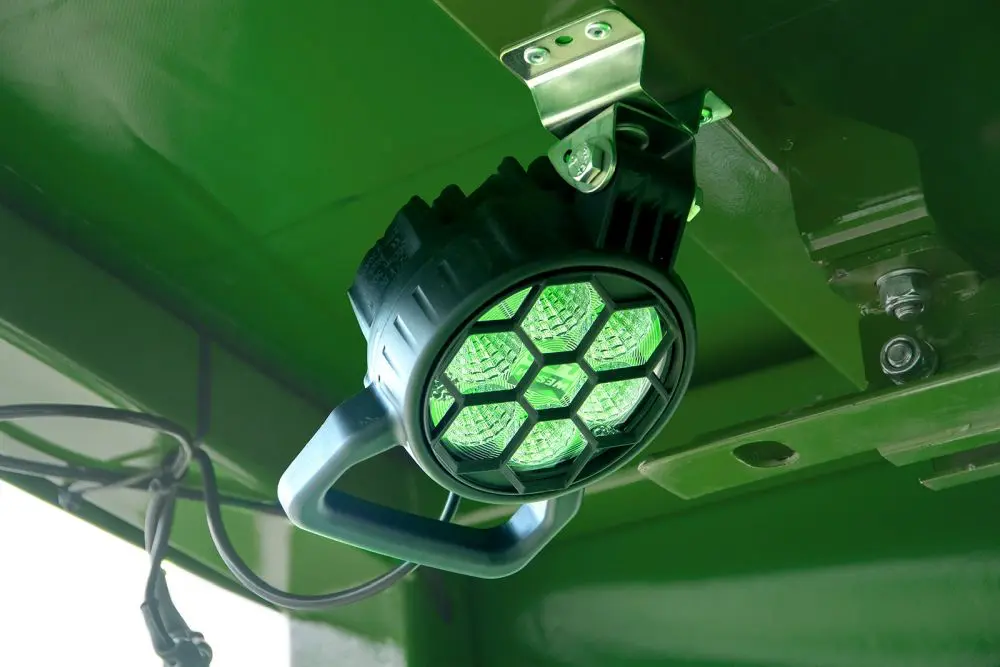

  • Additional light in loading case
  • Tube for documents
  • Warning triangle
  • Spare wheel winch, with crank
  • Fixed internal partition with adjustable position

The T046/h featured here is the most comfortable and ergonomic of our excellent cattle and livestock trailers. For the safety and care of your animals, entering and leaving the trailer is as safe as it could be because the trailer lowers and tips gently to the ground easing the movement on and off the transport. The ride is hydraulically cushioned to give the maximum comfort and additional safety. Call us today to do a deal and haul your herd in comfort and ultimate safety with one of our hydraulic tilting and lowering Pronar Cattle Trailers.

This hydraulic trailer type offers an easiest and safest way to transport your cattle from pasture to pasture or to market. Look no further than our high-quality cattle trailers designed specifically for use with tractors.

Our cattle and livestock trailers are crafted from durable, corrosion-resistant materials to withstand years of farm use. The lightweight yet sturdy construction ensures safe and stable transport, while the rounded corners and smooth flooring prevent injury and stress to your livestock during transit.

The model on this page at 20 feet 8 inches internal space is one of the two medium sized versions in the range. With our larger trailers we have a trailer to fit any herd. The low-profile designs allow for easy towing while still providing ample headroom inside. Large side doors enable easy loading and unloading of cattle, and the removable partitions let you customise spaces as needed.

Ventilation and airflow have been optimized to keep your herd comfortable on even the longest hauls. The trailer floors feature strategically placed drains and slip-resistant footing for solid stability.

Hitch up our cattle trailers to your tractor and feel confident knowing your animals are safe and secure. Whether you need to bring cattle in from the range or get them to market stress-free, our trailers will make the job easy and efficient.

Pronar supplies 800 tractor drawn trailers per month. The running gear and hydraulics are produced in house with build quality and conformity meeting very high Scandinavian standards meaning we can supply your trailer with the confidence of a 3 year warranty.

Choose from our four rugged, customizable trailers designed by farmers for farmers. Call us from our website contact details today to find the perfect cattle trailer to meet your needs!
