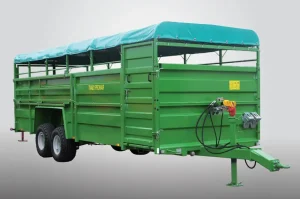

Pronar T046-2 Double Axle Cattle and Livestock Trailer with Hydraulic Drop-Down Floor

This is the large sized trailer in the range suitable to carry up to ten head with a hydraulic drop down system to lower and tilt the floor during loading and unloading. Additional tilt and turn front door.

Gross weight 12000 kg

Payload 8500 kg

Empty weight 3500 kg

Loading case 6990 x 2300mm (22 feet 11 inches by 7 feet 6 inches)

  • Permissible total weight: 12000 kg
  • Load capacity: 8500 kg
  • Empty weight: 3500 kg
  • Loading space: 14* m2
  • Loading case inside length: 6990 mm
  • Loading case inside width: 2300 mm
  • Loading case inside height: 2100** mm
  • Dimensions: length/width/height 8920/2530/2800 mm
  • Sidewall height: 1400 mm
  • Floor thickness: 4/3 mm
  • Platform height, measured from the ground (transport position/loading position): 660/130 mm
  • Wheel track: 2200 mm
  • Suspension: hydraulic
  • Hitch-ring load: 1500 kg
  • Tyres: 14.0/65-16
  • Maximum speed: 40 km/h
  • Tractor power requirement: 65/47.8 hp/kW

* surface without inner wheel arches

** height from the ground to the highest point of the canvas cover frame

  • Chassis frame made of steel closed rectangular profiles
  • Sidewalls made of profiles steel 3 mm
  • Universal drawbar integrated with frame to couple with upper or lower hitch of the tractor
  • Swinging gull-wing side doors

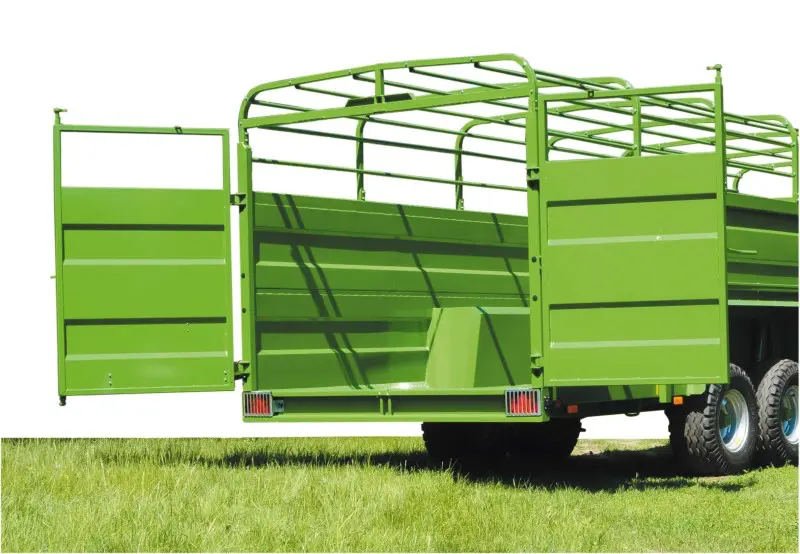

  • Wide-opening of rear door

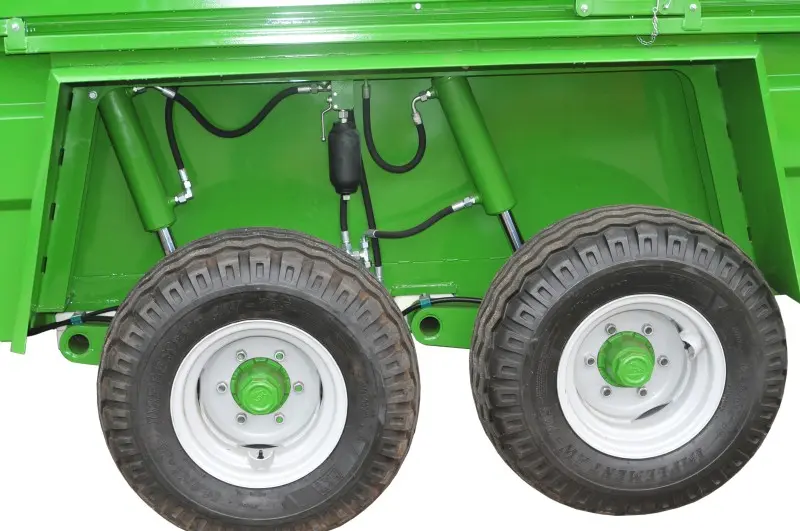

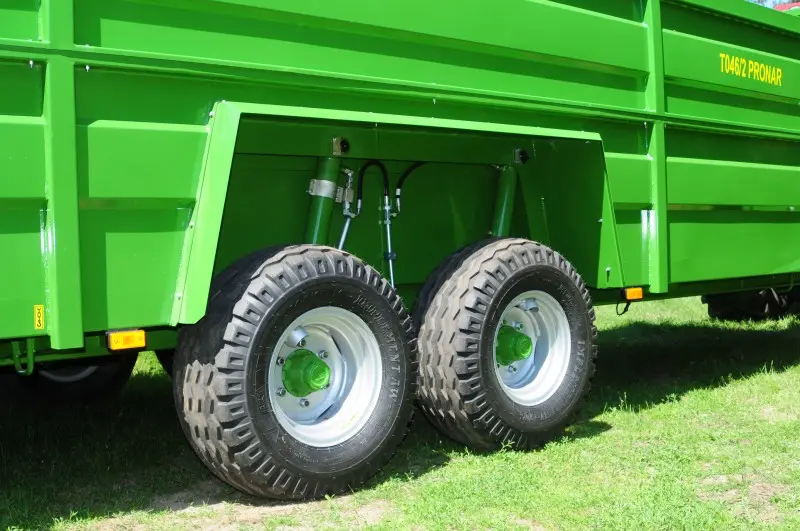

  • Tandem suspension with 4 hydraulic cylinders fitted with drum brakes
  • Hydraulically lowered loading case facilitating animal (un)loading
  • Hydraulic vibration shock absorbers
  • Drawbar towing hitch: rotary with towing eye 50 mm to couple with lower hitch of the tractor
  • Drawbar support: mechanic with a winch
  • Sealed chequer plate floor with two drainage holes
  • Braking system: double line air
  • Crank hand brake
  • Lighting system
  • Cover frame
  • Double-component chemically hardened painting materials, UV-resistant.
  • Wheel chocks + galvanized racks
  • Platform color: green RAL6010 PRONAR
  • Loading box made of walls 1500 mm height
  • Drawbar towing hitch: fixed upper with 40 mm towing eye (40 km/h version)
  • Drawbar towing hitch: fixed ball-type K80 mm
  • Drawbar support: hydraulic scissor-type with ball cut-off valve
  • Side barriers on the loading platform
  • Chequer plate floor with two drainage holes covered with anti-sliding and damping resin, covered with 15 mm rubber layer
  • Cattle separating inner barrier
  • Laced cover
  • Additional light in loading case
  • Warning triangle

The T046/2 hydraulic featured here is the largest of our most comfortable, safe and ergonomic cattle and livestock trailers. For the safety and care of your animals, entering and leaving the trailer is as safe as it could be because the trailer lowers and tips gently to the ground easing the movement on and off the transport. The ride is hydraulically cushioned to give the maximum comfort and additional safety. Call us today to do a deal and haul your herd in comfort and ultimate safety with one of our hydraulic tilting and lowering Pronar Cattle Trailers.

This hydraulic trailer type offers an easiest and safest way to transport your cattle from pasture to pasture or to market. Look no further than our high-quality cattle trailers designed specifically for use with tractors.

Our cattle and livestock trailers are crafted from durable, corrosion-resistant materials to withstand years of farm use. The lightweight yet sturdy construction ensures safe and stable transport, while the rounded corners and smooth flooring prevent injury and stress to your livestock during transit.

The double axle model model on this page at 23 feet internal length is one of the two larger sized versions in the range. With our larger trailers we have a trailer to fit any herd. The low-profile designs allow for easy towing while still providing ample headroom inside. Large side doors enable easy loading and unloading of cattle, and the removable partitions let you customise spaces as needed.

Ventilation and airflow have been optimized to keep your herd comfortable on even the longest hauls. The trailer floors feature strategically placed drains and slip-resistant footing for solid stability.

Hitch up our cattle trailers to your tractor and feel confident knowing your animals are safe and secure. Whether you need to bring cattle in from the range or get them to market stress-free, our trailers will make the job easy and efficient.

Pronar supplies 800 tractor drawn trailers per month. The running gear and hydraulics are produced in house with build quality and conformity meeting very high Scandinavian standards meaning we can supply your trailer with the confidence of a 3 year warranty.

Choose from our four rugged, customizable trailers designed by farmers for farmers. Call us from our website contact details today to find the perfect cattle trailer to meet your needs!
