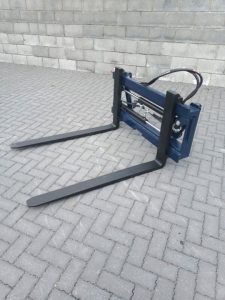

Pallet forks set with hydraulic adjusting action for loads up to 2500kg
This is the Agritrend pallet forks set with hydraulic adjusting pallet tines. Suitable for tractor loader and telehandler with a double ram design for ADJUSTING the width of the pallet tines . This hydraulic adjusting pallet fork was designed by Agritrend and made for us by our Partner at FK Machinery. Load capacity 2500kg. One double acting hydraulic service is required.
Our design intention was to create an over engineered implement for a multi decade work-life. So we provided generous thickness to steel profiles resulting in a more solid and strong implement for durability and with high build and finish standards.
Design incorporates a longer drop on the pallet tines of 500mm rather than the standard 410mm seen in our UPF25 and this is most useful for those with larger tractor loaders and telehandlers.
The spec for the forks is 100mm width which is superior to many other offers where the width is skinny and inappropriate at only 80mm. The pallet tines are 40mm thick and 1250mm long.
Overall implement front to back depth 1370mm Implement height 720mm Max opening width (outside edge of forks to outside edge) 1195mm Min opening width (outside edge of forks to outside edge) 402mm Width of individual forks 100mm Weight 239kg.

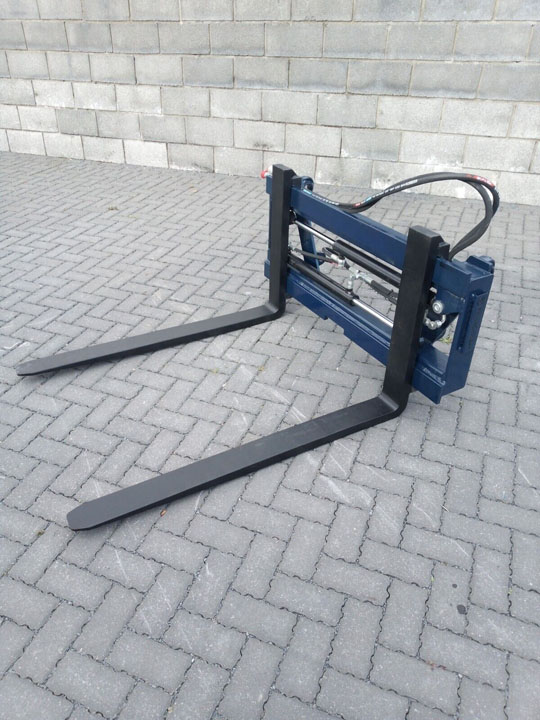

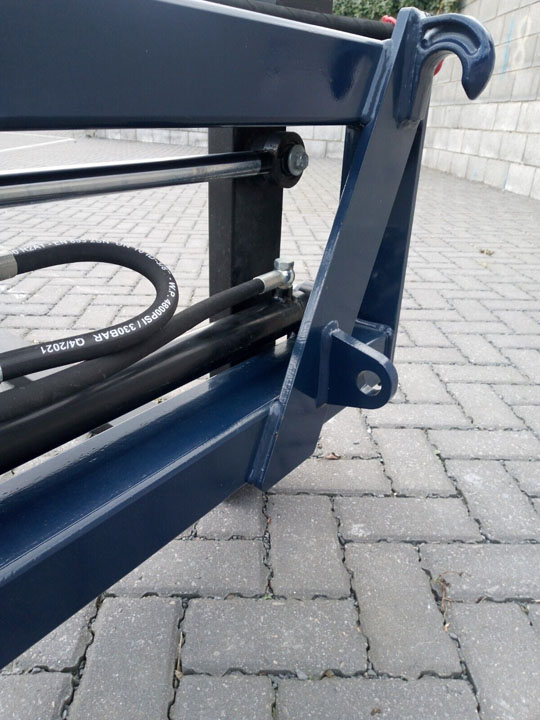

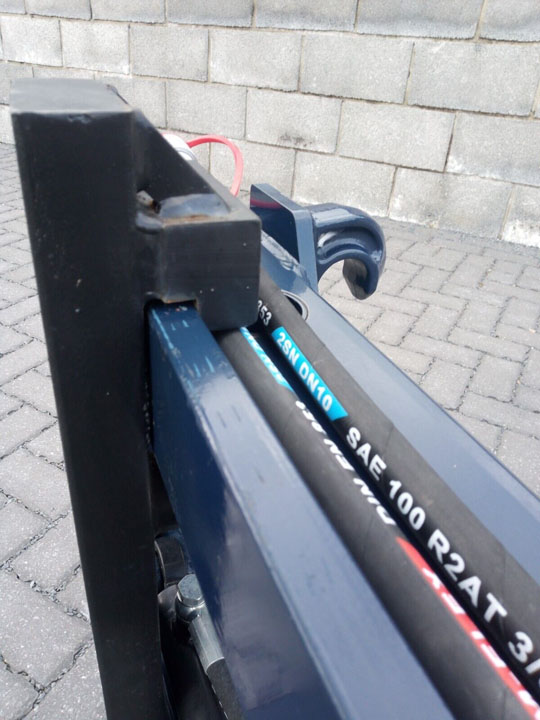

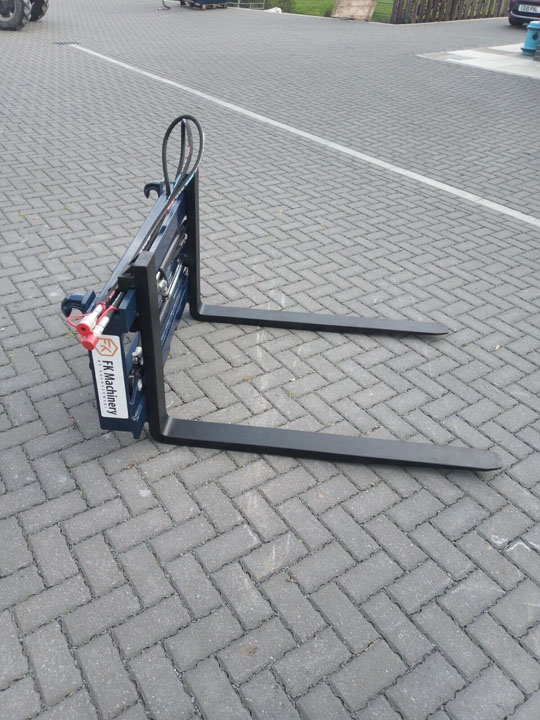

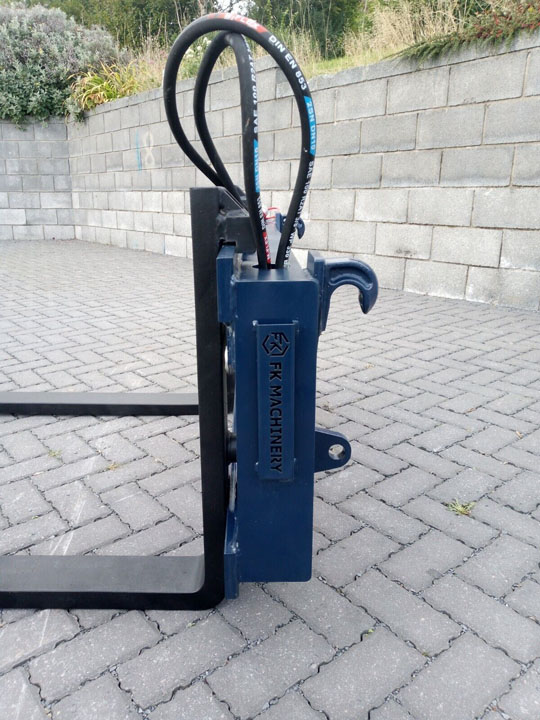

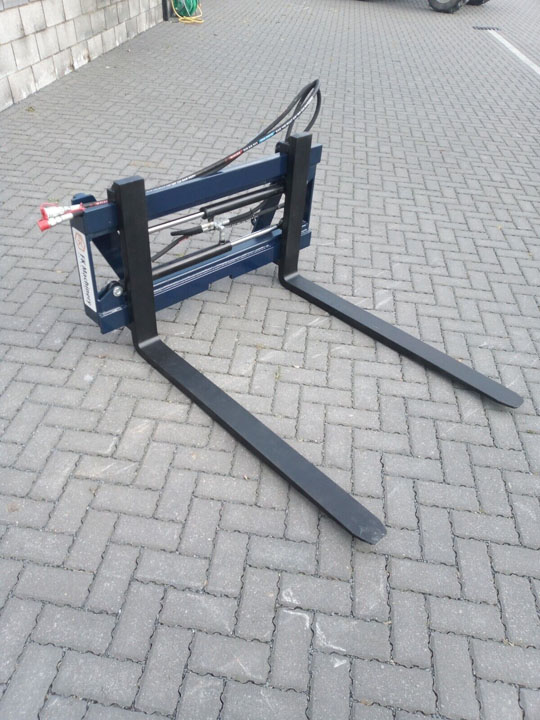

In addition to the design and spec being top rated, the welding and finish are to Agritrend's very high standards as seen in the photos.
Summary:
- 239 kg (weight of implement without brackets indicates our heavy and generous build).
- 2500 kg lifting capacity Forks rated and CE certificated to 2500kg across the pair.
- Width 1195mm closing to 402mm (outside edge to outside edge) Box profile 100mm X 80mm X 5mm. Fork dimensions 100mm X 1200mm.

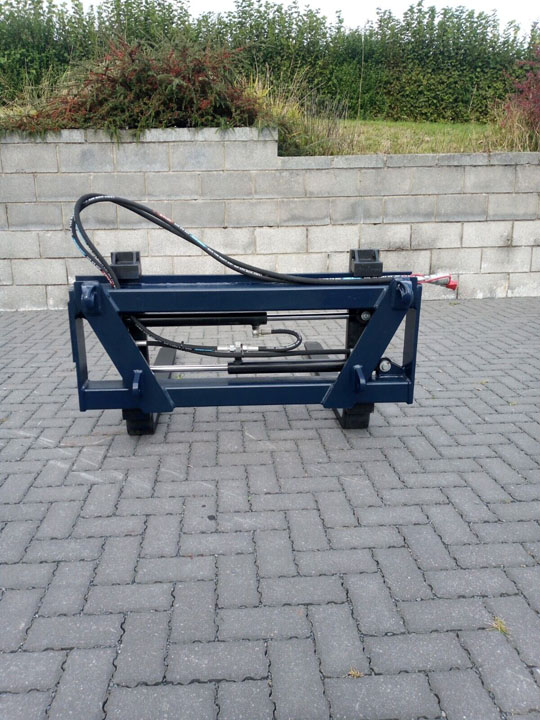

- 2 x rams left and right to move the forks Euro 8.
- Can be purchased without price £1535 plus VAT. Additional brackets POA.
- We will fit hydraulic couplings to your required size and gender.
You can collect one of our hydraulic adjusting pallet fork sets from one of our depots if convenient to you, or delivery can be arranged on a single pallet POA.
Call us if you have any more questions. We are available Monday to Sunday.
